| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH120 |

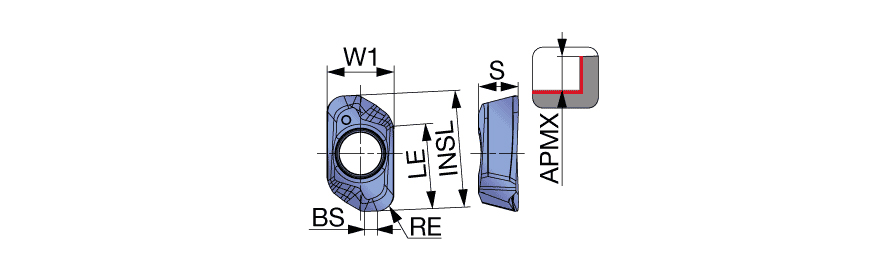

| Insert Length (INSL) | 0.238″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Number of Cutting Edges | 2 |
| Depth of Cut Maximum (APMX) | 0.157″ | Cutting Edge Effective Length (LE) | 0.173″ |
| Insert Width (W1) | 0.138″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.083″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.039″ |

Product Features

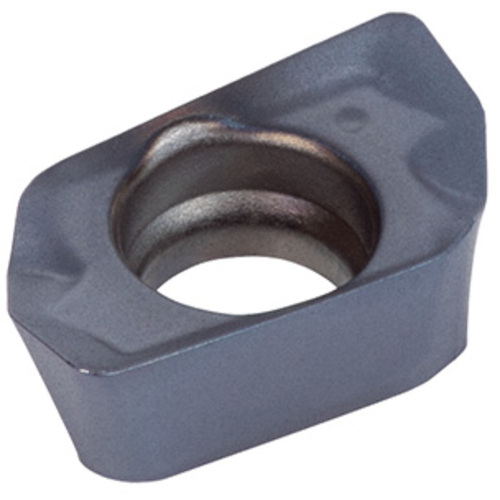

| Family Description | Single-sided insert with 2 edges and MM chipbreaker for general purpose use | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
