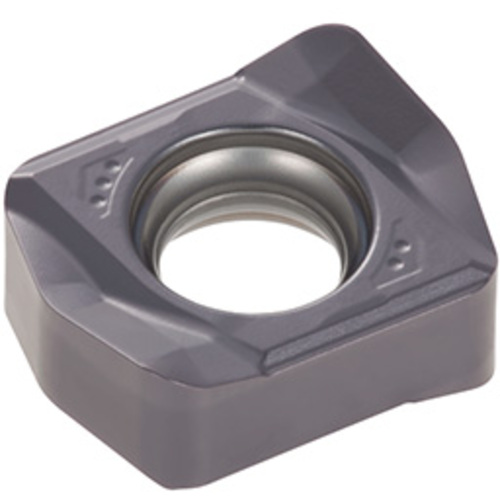

LNMU06X5ZER-ML AH725
Milling Insert; LNMU06X5ZERML AH725 AH725 × 0.472″ Width × 0.276″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0276 in/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

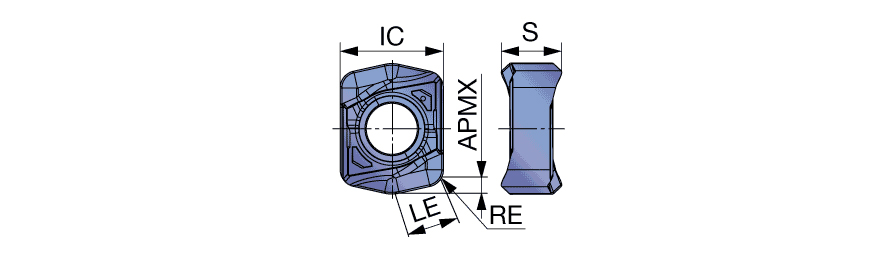

| Corner Radius (RE) | 0.0787″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Insert Width (W1) | 0.472″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.472″ | Cutting Edge Effective Length (LE) | 0.236″ |
| Insert Thickness (S) | 0.276″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH725 |
Product Features
| Family Description | Double sided insert with 4 edges and ML chipbreaker | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.254
