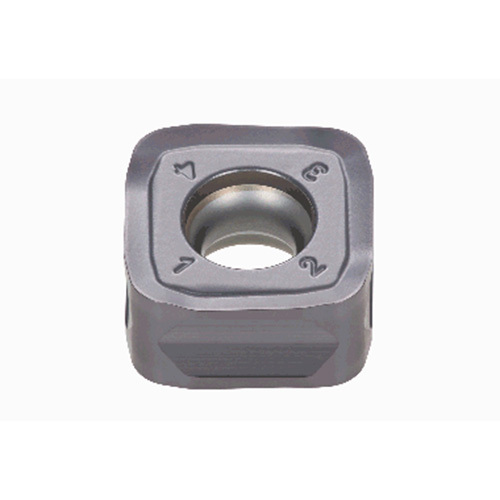

SQMU1206ZSR-MJ AH120
Milling Insert; SQMU1206ZSRMJ AH120 AH120 × 0.461″ Width × 0.236″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | High Feed Milling | | Maximum Feed per Tooth (fz(max)) | 0.0787 in/tooth |

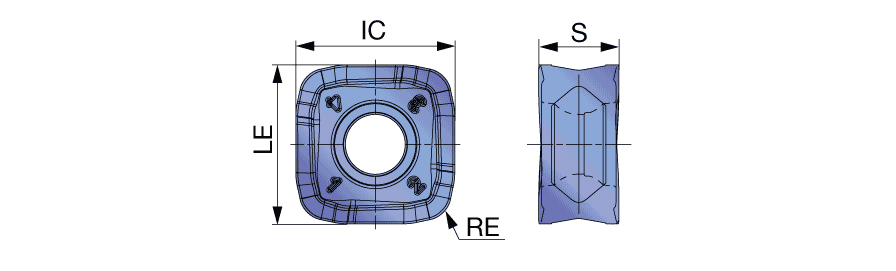

| Corner Radius (RE) | 0.0787″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.461″ | Minimum Feed per Tooth (fz(min)) | 0.02 in/tooth |
| Inscribed Circle Diameter (IC) | 0.461″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.236″ | Cutting Edge Effective Length (LE) | 0.461″ |
| Wiper Edge Length (BS) | 0.039″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | 8 corners double sided insert with MJ chipbreaker, low cutting force even in high feed cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.021
