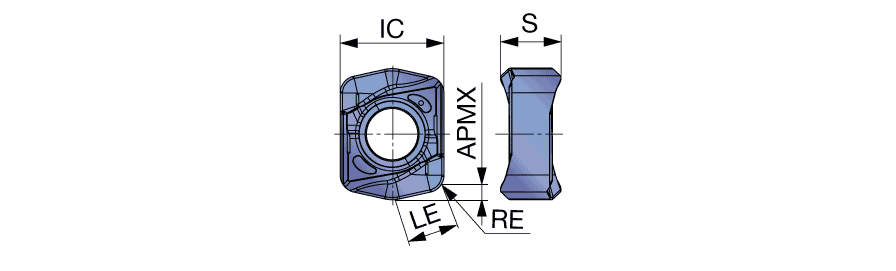

LNMU06X5ZER-MJ AH120
Milling Insert; LNMU06X5ZERMJ AH120 AH120 × 0.472″ Width × 0.276″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1.5 mm/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 1.5 mm | Minimum Feed per Tooth (fz(min)) | 0.5 mm/tooth |
| Insert Width (W1) | 12 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 12 mm | Cutting Edge Effective Length (LE) | 6 mm |
| Insert Thickness (S) | 7 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | Double sided insert with 4 edges and MJ chipbreaker for DoFeed 06 series, for general perpose | Country of Origin | Japan |
Shipping Info
Package Weight
0.026
