HFZN10M025M12R05

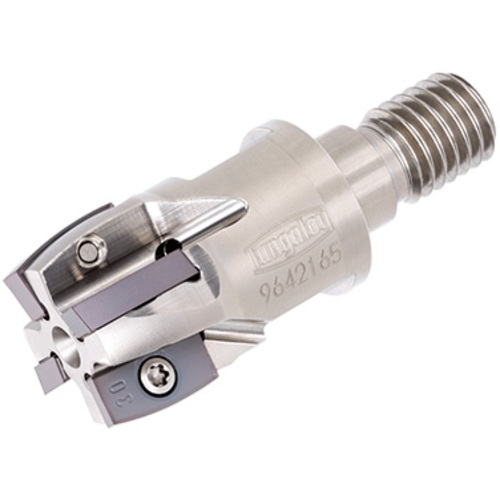

Indexable End Mill; 22 mm Dia. × 57 mm OAL

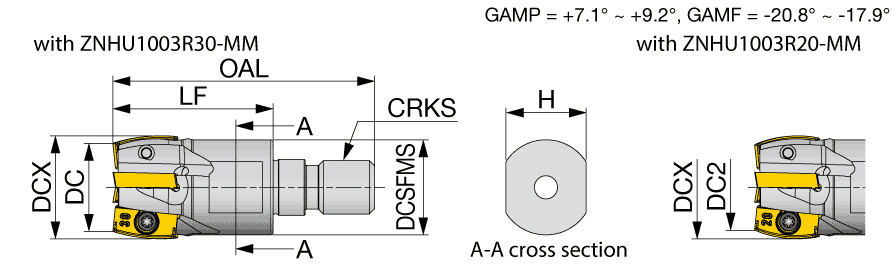

| Cutting Diameter (DC/DCX) | 22 mm | Functional Length (LF) | 35 mm |
| Cutting Diameter (DC) | 22 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Overall Length (OAL) | 57 mm | Connection Retention Knob Thread Size (CRKS) | M12 |
| Application | | Profile Milling | | Shank Height (H) | 17 mm |
| Master Insert Identification (MIID) | ZNHU1003R30-MM | Cutting Diameter Maximum (DCX) | 25 mm |
Product Features
| Family Description | Profiling endmill, modular type (TungFlex), for 2-corner double sided inserts | Country of Origin | JAPAN |
