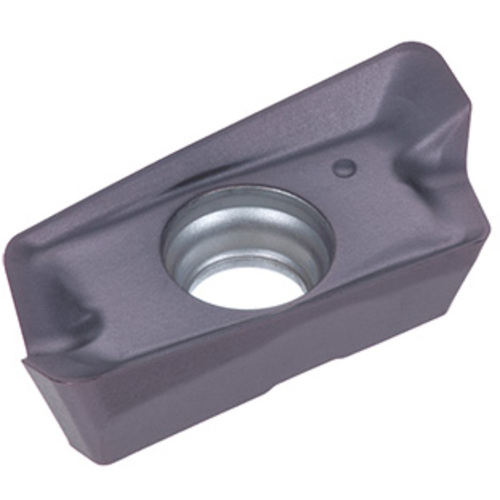

AVMT120416PDER-MM AH120
Milling Insert; AVMT120416PDER-MM AH120 AH120 × 0.26″ Width × 0.142″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH120 |
| Insert Length (INSL) | 0.559″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063″ | Number of Cutting Edges | 2 |
| Depth of Cut Maximum (APMX) | 0.453″ | Cutting Edge Effective Length (LE) | 0.465″ |
| Insert Width (W1) | 0.26″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.142″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.012″ |
Product Features
| Family Description | Single-sided insert with 2 edges and MM chipbreaker for general purpose use | Country of Origin | JAPAN |

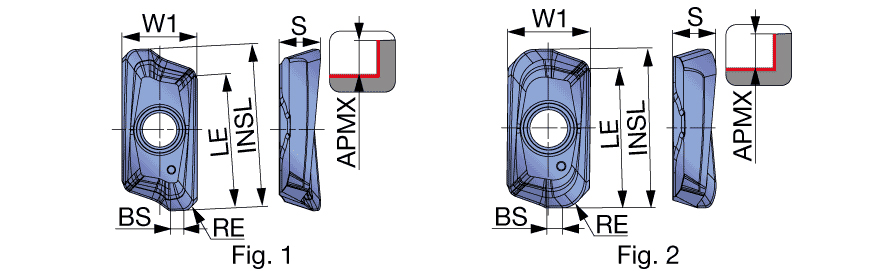

| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". The inserts shown in Figure 2 are not compatible with ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0.000
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
