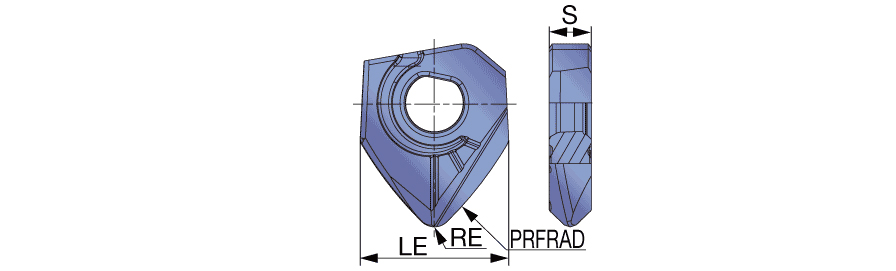

ZFCBM250R625-MM CH315
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Profile Milling | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 3 mm | Number of Cutting Edges | 1 |
| Depth of Cut Maximum (APMX) | 13.8 mm | Cutting Edge Effective Length (LE) | 25 mm |
| Insert Thickness (S) | 6.4 mm | Measurement Type | Metric |
| Coating | AlCrN | Body Material | Carbide |
| Grade | CH315 |
Product Features
| Family Description | Barrel type insert with large radius cutting edge for high productivity. | Country of Origin | S.Korea |
| Remarks | With ZFCBM insert, the functional length (LF) of the EBFM and HBFM cutters becomes longer for the amount as indicated below: For E/HBFM12, +2.6 mm; E/HBFM16, +4.0 mm; E/HBFM20, +4.4 mm; E/HBFM25, +5.8 mm; and E/HBFM30, +5.9 mm. |
Shipping Info
Package Weight
0.000
