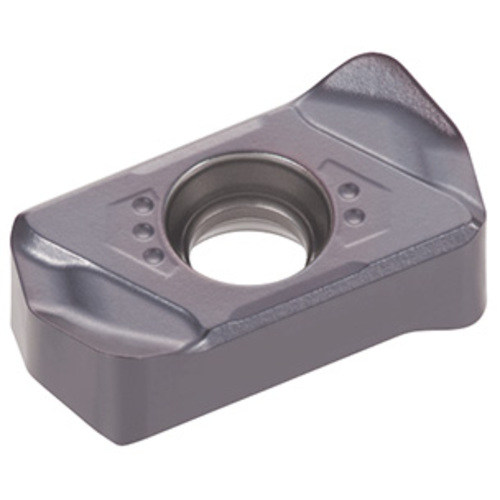

LNMU0303ZER-ML AH130
Milling Insert; LNMU0303ZERML AH130 AH130 × 0.236″ Width × 0.169″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.7 mm/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

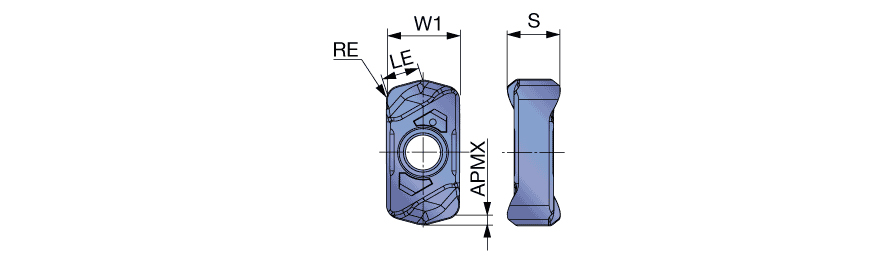

| Corner Radius (RE) | 1.2 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 6 mm | Cutting Edge Effective Length (LE) | 3.2 mm |
| Insert Thickness (S) | 4.29 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH130 |
Product Features
| Family Description | Double sided insert with 4 edges and ML chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.02
