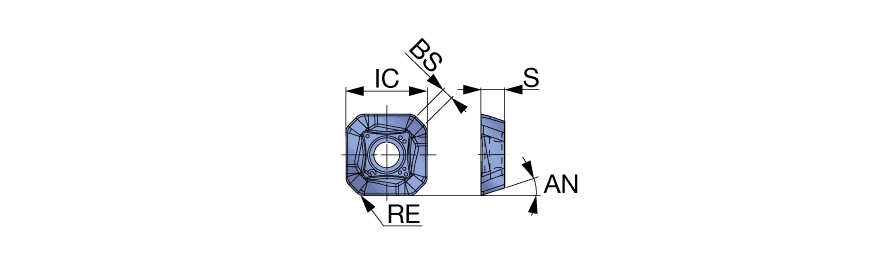

SWMT13T3AFPR-MJ AH130
Milling Insert; SWMT13T3AFPRMJ AH130 AH130 × 0.547″ Width × 0.157″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | AH130 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 1.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 13.9 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Inscribed Circle Diameter (IC) | 13.9 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 4 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 2 mm | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | For general purpose. Sharp edge provides low cutting force. | Country of Origin | Japan |
Shipping Info
Package Weight
0.016
