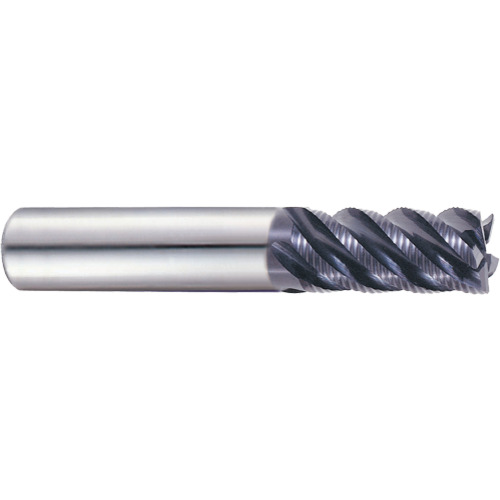

Square End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 6 FL ; Carbide ; TiAlN ; Series EH919
| Cutting Diameter (DC) | 20 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Length Group | Long |
| Depth of Cut Maximum (APMX) | 38 mm | Flute Type | Roughing |
| Overall Length (OAL) | 104 mm | Style | Square End 45 Degrees Helix Long Length Fine Pitch Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.7874″ |
| Coating | TiAlN | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Series/List # | EH919 |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.8965
