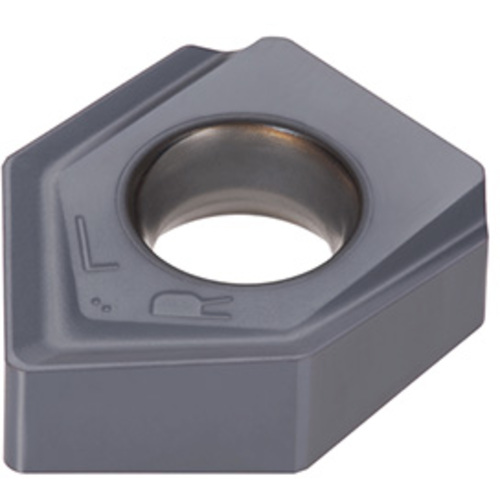

SNHU1706ANFN-W AH120
Milling Insert; SNHU1706ANFN-W AH120 AH120 × 0.433″ Width × 0.256″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |

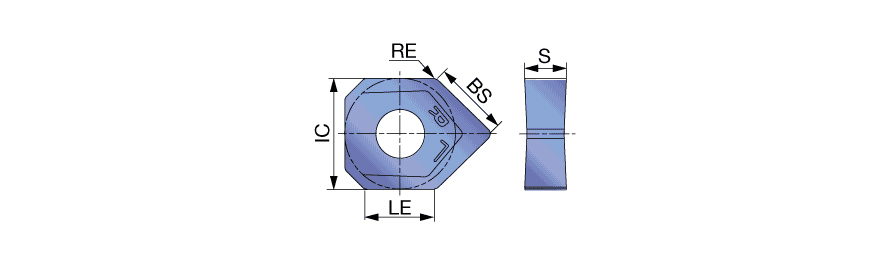

| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.016″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.433″ | Minimum Feed per Tooth (fz(min)) | 0.006 in/tooth |
| Inscribed Circle Diameter (IC) | 0.681″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.256″ | Cutting Edge Effective Length (LE) | 0.433″ |
| Wiper Edge Length (BS) | 0.433″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Double-sided wiper insert with 2 wiper edge faces when using SNMU/SNHU inserts | Country of Origin | ISRAEL |

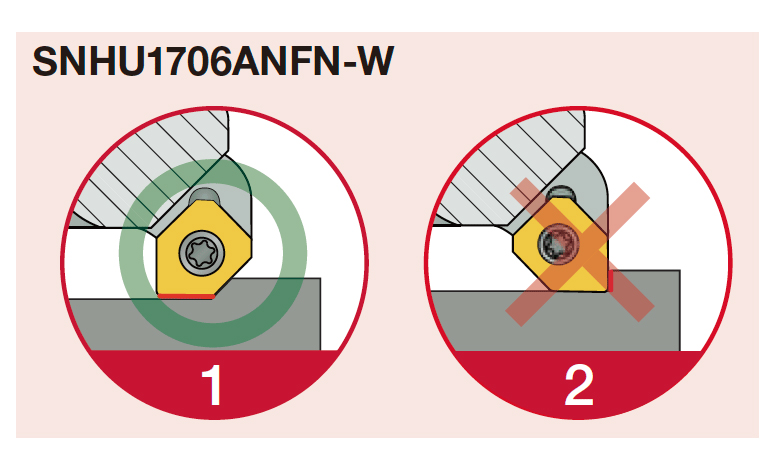

| Remarks | Attach only one wiper insert on the cutter and make sure the wiper edge faces the machining surface. Feed rate: f < 9.5 mm/rev Do not use this insert mixed with ONMU, ONHU or OWMT inserts on the same cutter. |
Shipping Info
Package Weight
0.509
