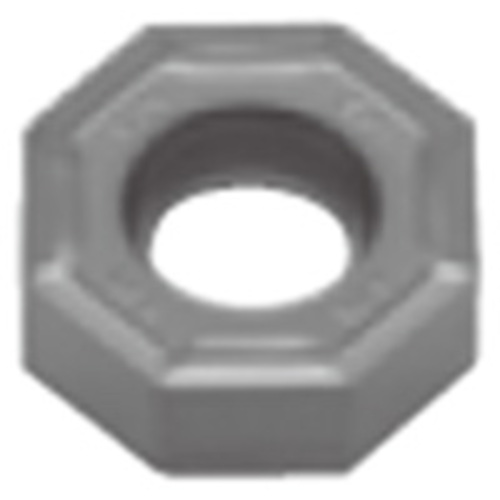

ONHU0705ANPR-W AH120
Milling Insert; ONHU0705ANPRW AH120 × 0.252″ Width × 0.228″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.252″ | Minimum Feed per Tooth (fz(min)) | 0.006 in/tooth |

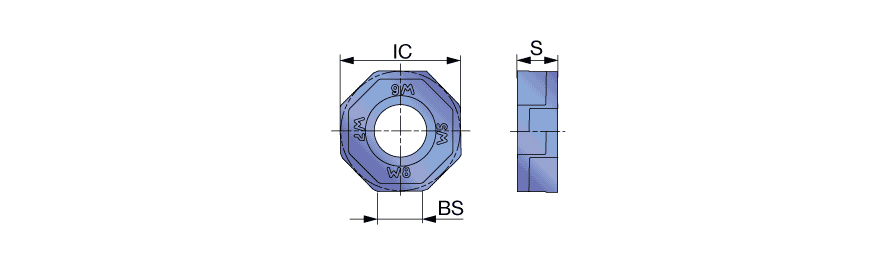

| Inscribed Circle Diameter (IC) | 0.689″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.228″ | Cutting Edge Effective Length (LE) | 0.252″ |
| Wiper Edge Length (BS) | 0.252″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | Double-sided wiper insert with 8 wiper edge faces when using ONMU/ONHU inserts | Country of Origin | Israel |

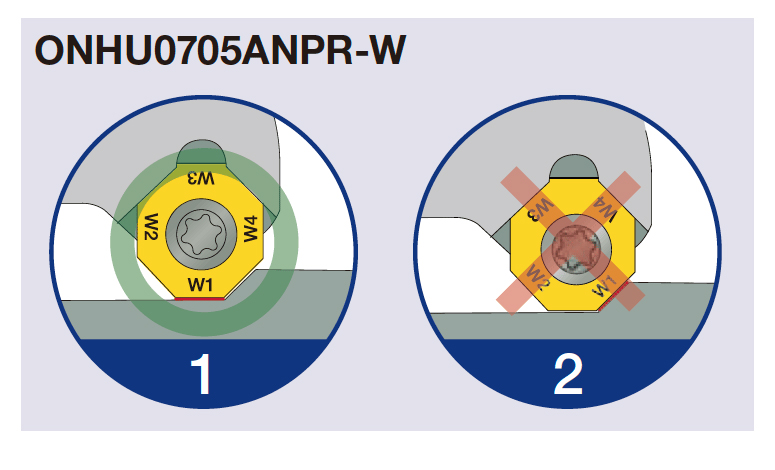

| Remarks | Attach only one wiper insert on the cutter and make sure the wiper edge faces the machining surface. Feed rate: f < 5.5 mm/rev Do not use this insert mixed with SNMU, SNHU or OWMT inserts on the same cutter. |
Shipping Info
Package Weight
0.04
