ONHU0705ANPN-MJ AH725
Milling Insert; ONHU0705ANPN-MJ AH725 AH725 × 0.283″ Width × 0.244″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

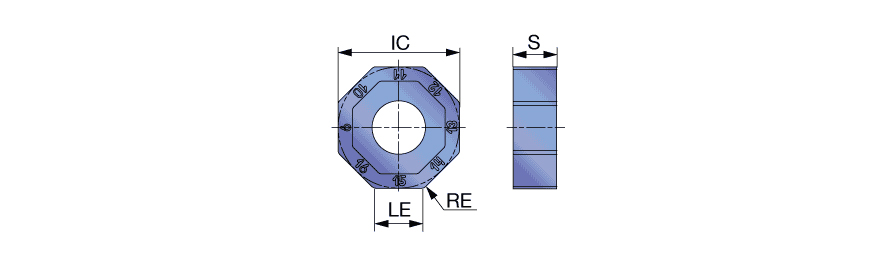

| Corner Radius (RE) | 0.0314″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.189″ | Minimum Feed per Tooth (fz(min)) | 0.008 in/tooth |
| Insert Width (W1) | 0.283″ | Number of Cutting Edges | 16 |
| Inscribed Circle Diameter (IC) | 0.681″ | Cutting Edge Effective Length (LE) | 0.283″ |
| Insert Thickness (S) | 0.244″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH725 |
Product Features

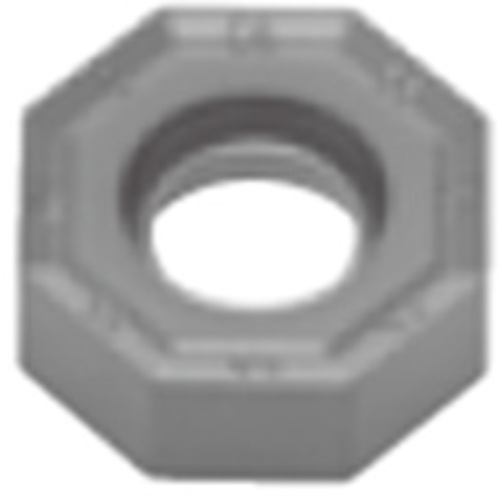

| Family Description | Double-sided octagonal insert with 16 cutting edges | Country of Origin | ISRAEL |
| Remarks | ONMU: M class insert ONHU: H class High precision insert MJ: For general purpose ML: Suitable for machining low rigidity workpieces |
Shipping Info
Package Weight
0.399
