AOMT070208PDPR-HJ AH140
Milling Insert; AOMT070208PDPRHJ AH140 AH140 × 0.193″ Width × 0.094″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | | Grade | AH140 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0354 in/tooth |

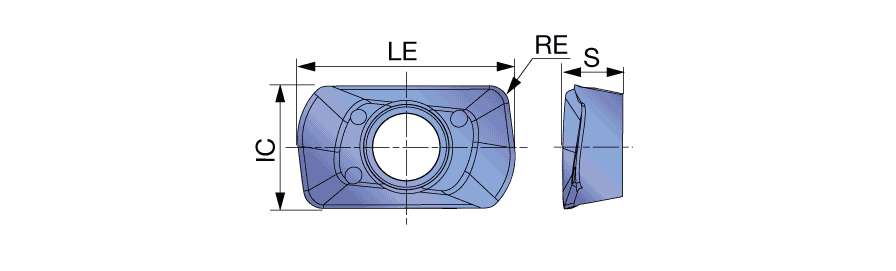

| Insert Length (INSL) | 0.346″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0314″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.031″ | Minimum Feed per Tooth (fz(min)) | 0.016 in/tooth |
| Insert Width (W1) | 0.193″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 0.193″ | Cutting Edge Effective Length (LE) | 0.346″ |
| Insert Thickness (S) | 0.094″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Uniquly designed insert for high feed machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
