LQMU180824PNER-MJ AH140
Milling Insert; LQMU180824PNERMJ AH140 AH140 × 0.453″ Width × 0.429″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

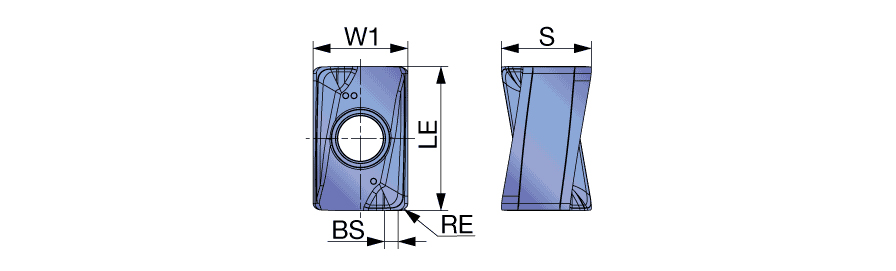

| Corner Radius (RE) | 0.0944″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.63″ | Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Insert Width (W1) | 0.453″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.453″ | Cutting Edge Effective Length (LE) | 0.689″ |
| Insert Thickness (S) | 0.421″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH140 |
Product Features
| Family Description | Double-sided insert with 4 cutting edges, for general purpose | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.392
