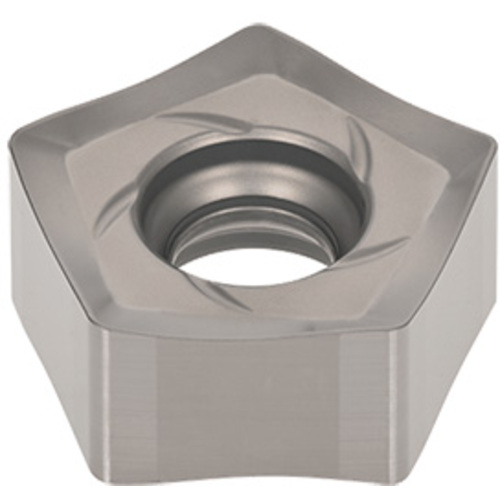

PNCU0905GNER-MJ AH140
Milling Insert; PNCU0905GNERMJ AH140 AH140 × 0.233″ Thickness ; Carbide ; TiAlN

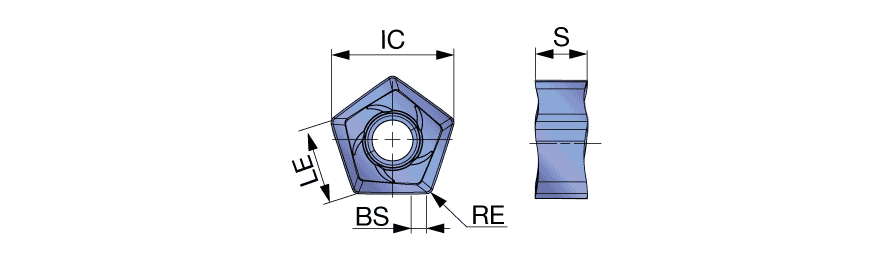

| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.0177 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0314″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.252″ | Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Inscribed Circle Diameter (IC) | 0.48″ | Number of Cutting Edges | 10 |
| Insert Thickness (S) | 0.233″ | Cutting Edge Effective Length (LE) | 0.35″ |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH140 |
Product Features
| Family Description | For general purpose, C class, Double sided pentagonal insert. Suitable for steels and cast iron. | Country of Origin | Germany |
Shipping Info
Package Weight
0.019
