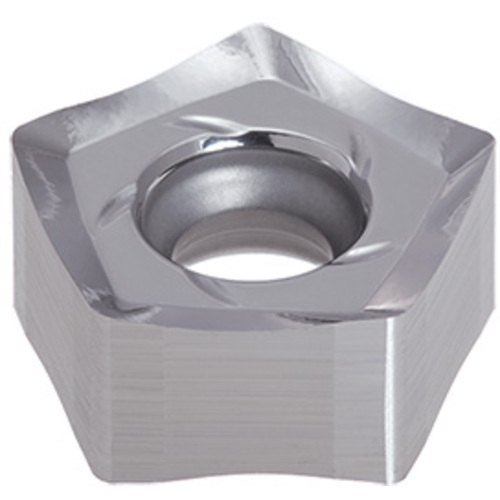

PNCU0905GNFR-AJ TH10
Milling Insert; PNCU0905GNFRAJ TH10 TH10 × 0.246″ Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.252″ | Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Inscribed Circle Diameter (IC) | 0.48″ | Number of Cutting Edges | 10 |
| Insert Thickness (S) | 0.246″ | Cutting Edge Effective Length (LE) | 0.35″ |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TH10 |
Product Features
| Family Description | For aluminum machining. Double-sided pentagonal insert. | Country of Origin | Germany |
Shipping Info
Package Weight
0.02
