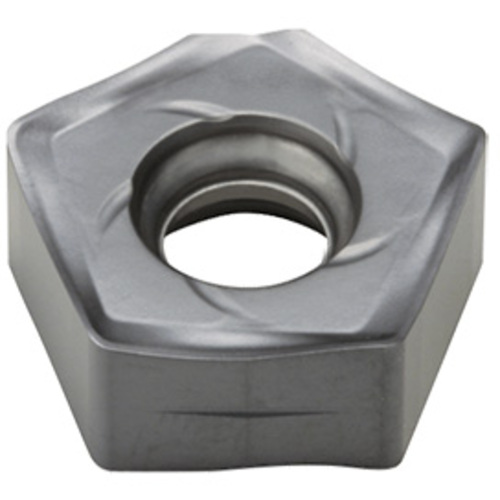

PNCU0905GNER-W AH725
Milling Insert; PNCU0905GNERW AH725 AH725 × 0.233″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH725 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |

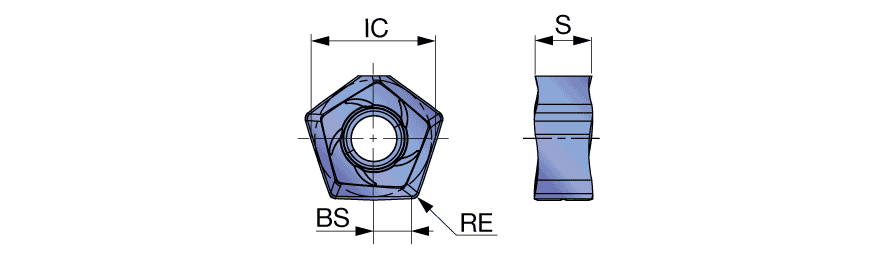

| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.079″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 4.724″ | Minimum Feed per Tooth (fz(min)) | 0.0059 in/tooth |
| Insert Thickness (S) | 0.233″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.15″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | For finishing | Country of Origin | Germany |
Shipping Info
Package Weight
0.019
