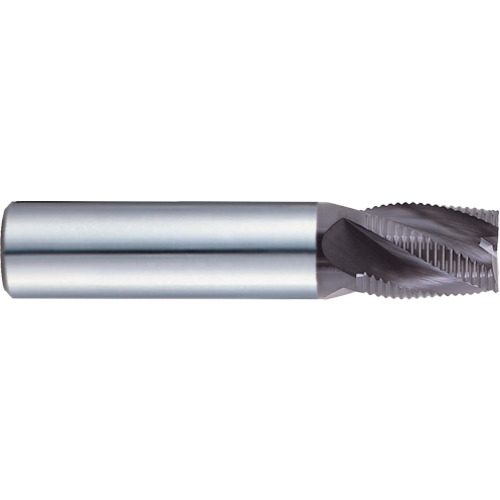

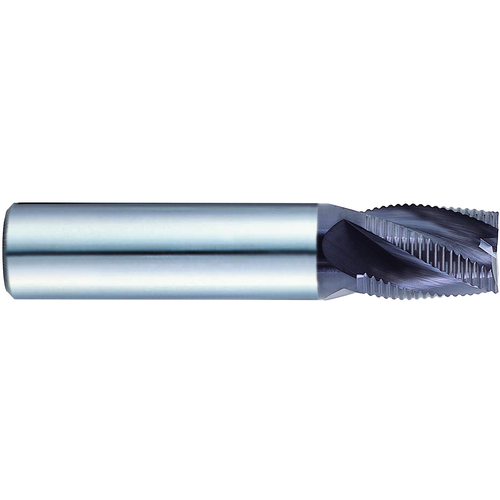

Square End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; Carbide ; TiAlN ; Series EH094
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; Carbide ; TiAlN ; Series EH094
| Cutting Diameter (DC) | 3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1″ | Flute Type | Roughing |
| Overall Length (OAL) | 3-3/4″ | Style | Square End 30 Degrees Helix Stubular Length |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | EH094 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.792
