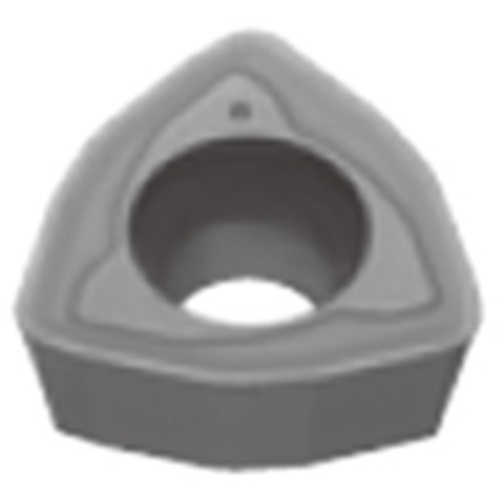

WPMT080615ZPR-DML AH730
Milling Insert; WPMT080615ZPRDML AH730 AH730 × 1/4″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | AH730 |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

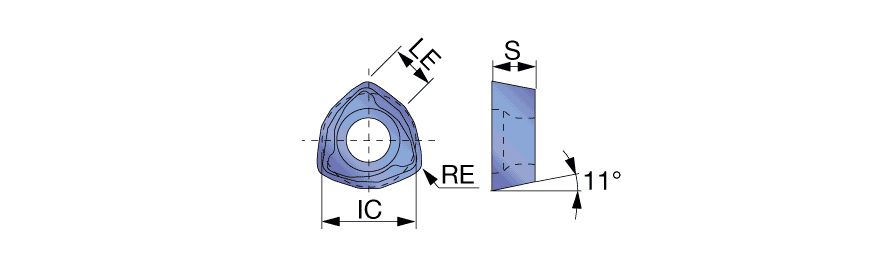

| Corner Radius (RE) | 0.059″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.507″ | Cutting Edge Effective Length (LE) | 0.315″ |
| Insert Thickness (S) | 1/4″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Trigon insert with DML chipbreaker for die steel machining | Country of Origin | Japan |
Shipping Info
Package Weight
0.026
