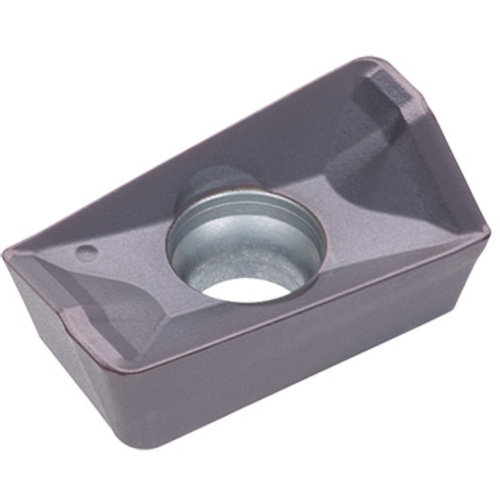

ASMT11T304PDPR-MJ AH130
Milling Insert; ASMT11T304PDPR-MJ AH130 AH130 × 0.264″ Width × 0.146″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH130 |
| Insert Length (INSL) | 0.484″ | Maximum Feed per Tooth (fz(max)) | 0.0039 in/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.417″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.264″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.264″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.146″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.055″ | Body Material | Carbide |
Product Features
| Family Description | High performance insert with MJ chipbreaker for general purpose | Country of Origin | Japan |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
0.008
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
