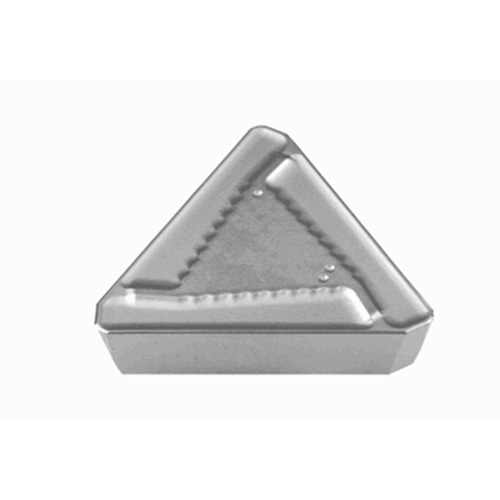

TPMR2204PDSR-MJ T3130
Milling Insert; TPMR2204PDSR-MJ T3130 T3130 × 0.187″ Thickness ; Carbide ; TiCN+Al2O3+TiN

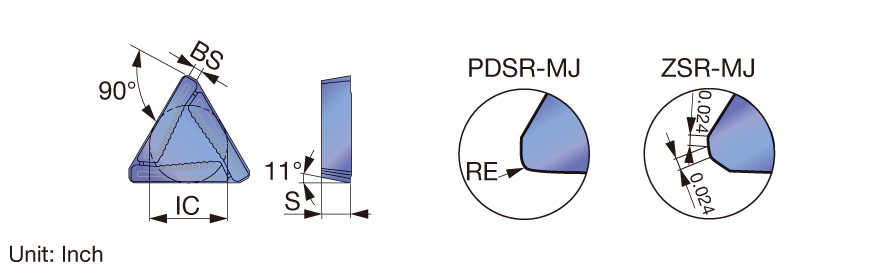

| Applicable Material | | Steel | Stainless Steel | | Coating | TiCN+Al2O3+TiN |
| Application | | Shoulder Milling | | Grade | T3130 |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.047″ | Body Material | Carbide |
Product Features
| Family Description | Triangle insert with MJ chipbreaker | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.317
