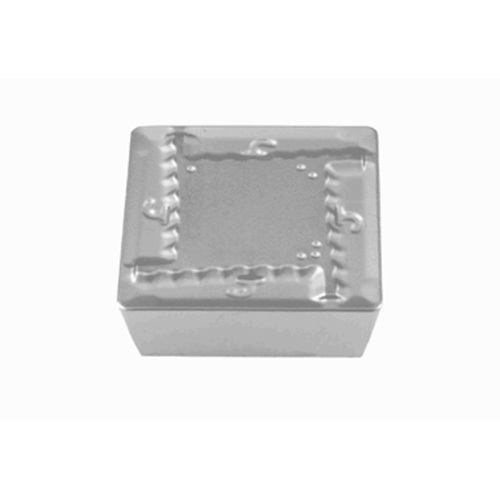

SPMR1605PPTR-MJ T3130
Milling Insert; SPMR1605PPTR-MJ T3130 T3130 × 0.63″ Width × 0.219″ Thickness ; Carbide ; TiCN+Al2O3+TiN

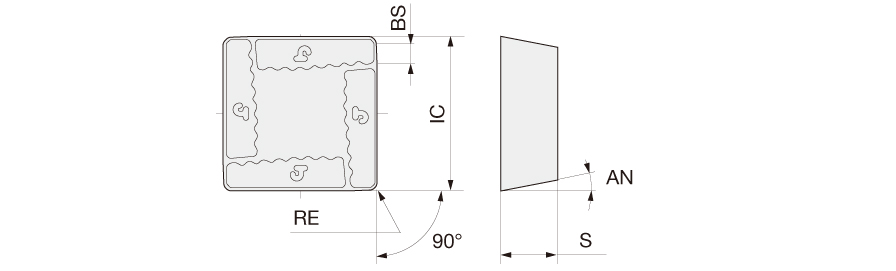

| Applicable Material | | Steel | Stainless Steel | | Coating | TiCN+Al2O3+TiN |
| Corner Radius (RE) | 0.0314″ | Grade | T3130 |
| Depth of Cut Maximum (APMX) | 0.472″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.63″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.63″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.219″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
Product Features
| Family Description | With MJ chipbreaker for general purpose | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.417
