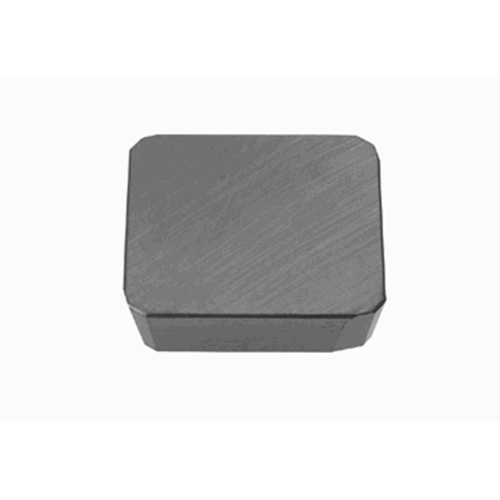

SPKR53SSR-MJ T3130

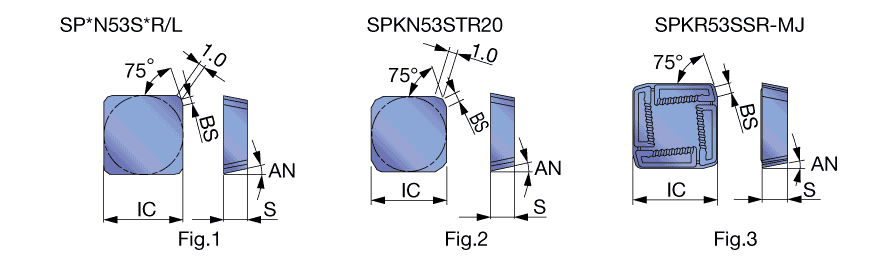

Milling Insert; SPKR53SSR-MJ T3130 ISO T3130 × 5/8″ Width × 0.187″ Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Coating | TiCN+Al2O3+TiN |
| Application | | Face Milling | | Grade | T3130 |
| Depth of Cut Maximum (APMX) | 0.394″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 5/8″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 5/8″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
Product Features
| Family Description | Flat-top square insert with 11deg relief angle, for large depth of cut | Country of Origin | Japan |
Shipping Info
Package Weight
0.035
