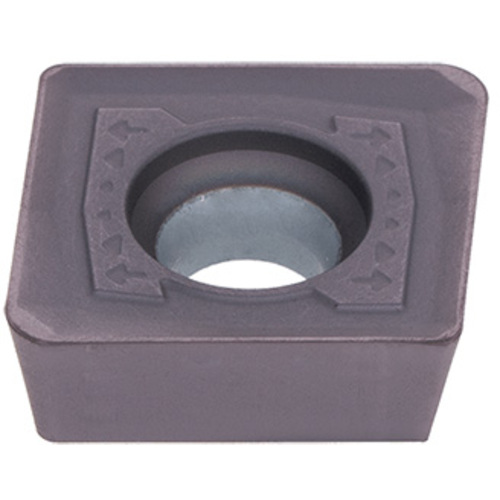

APMT120416PR-MJ T3130
Milling Insert; APMT120416PR-MJ T3130 T3130 × 1/2″ Width × 0.187″ Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Grade | T3130 |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |

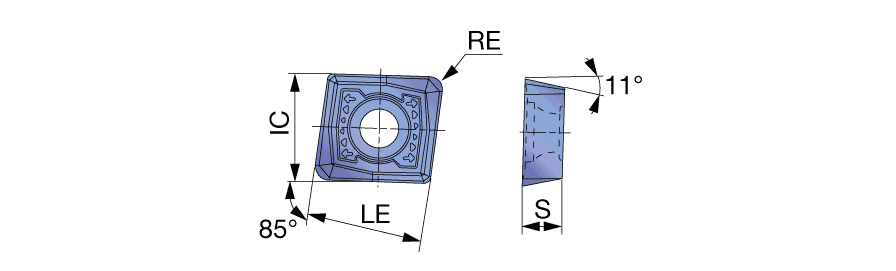

| Corner Radius (RE) | 0.0629″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.394″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 1/2″ | Cutting Edge Effective Length (LE) | 0.531″ |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.187″ | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
Product Features
| Family Description | Insert for plunging tool with MJ chipbreaker | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.201
