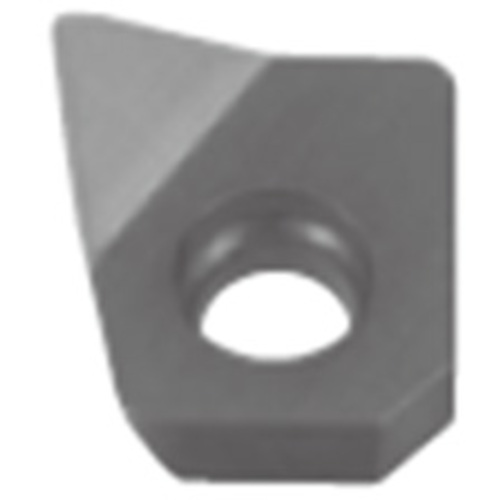

XVGT09X405EC-MJ AH730
Milling Insert; XVGT09X405ECMJ AH730 AH730 × 0.323″ Width × 0.157″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Coating | TiAlN |
| Application | | Shoulder Milling | | Grade | AH730 |

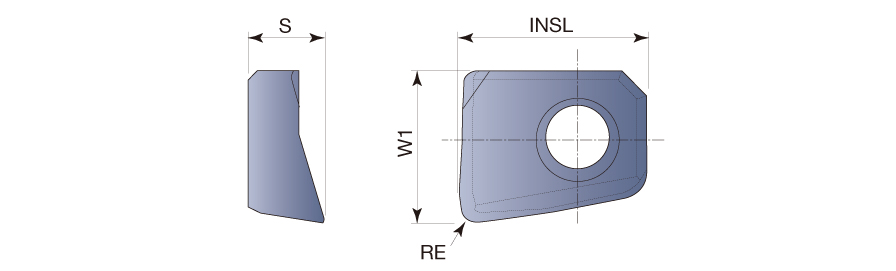

| Insert Length (INSL) | 0.354″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0196″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.177″ | Number of Cutting Edges | 1 |
| Insert Width (W1) | 0.323″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.157″ | Body Material | Carbide |
Product Features
| Family Description | Central edge insert for general purpose | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.073
