WWCW13T3AFFR-WS DS1100
Milling Insert; WWCW13T3AFFR-WS DS1100 DS1100 × 19.2 mm Width × 4 mm Thickness ; Carbide ; Diamond Like Carbon
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DS1100 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |

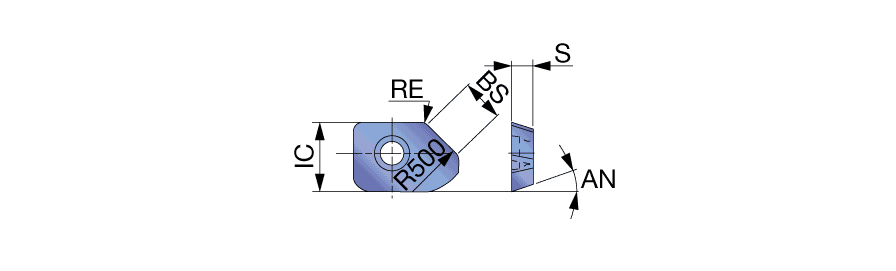

| Corner Radius (RE) | 1.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 19.2 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Inscribed Circle Diameter (IC) | 12.8 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 4 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 7.8 mm | Body Material | Carbide |
| Coating | Diamond Like Carbon |
Product Features
| Family Description | Wiper insert for aluminum finishing with excellent sharp cutting edegs | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.262
