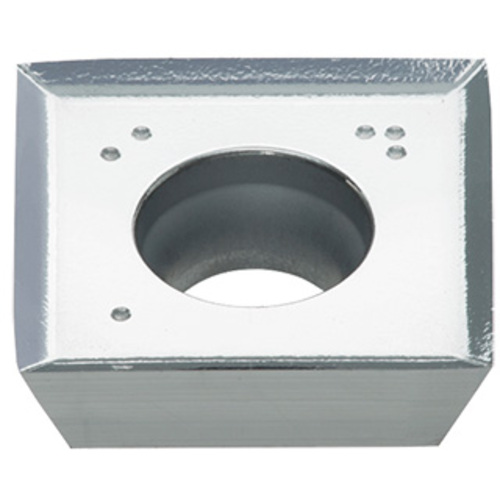

SEGT12X4ZEFR-AJ DS1100
Milling Insert; SEGT12X4ZEFR-AJ DS1100 DS1100 × 1/2″ Width × 0.157″ Thickness ; Carbide ; Diamond Like Carbon
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

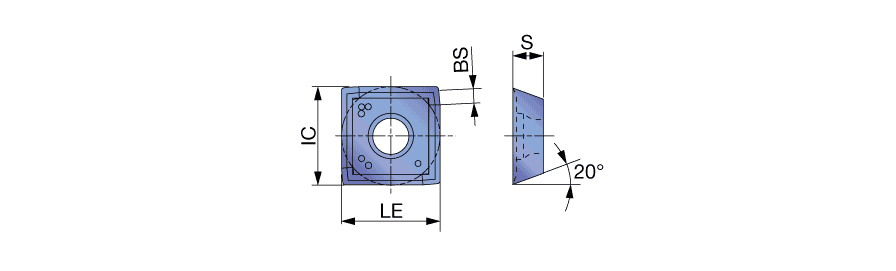

| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.157″ | Cutting Edge Effective Length (LE) | 1/2″ |
| Wiper Edge Length (BS) | 0.071″ | Measurement Type | Inch |
| Coating | Diamond Like Carbon | Body Material | Carbide |
| Grade | DS1100 |
Product Features
| Family Description | Square insert with AJ chipbreaker for aluminum machining | Country of Origin | Japan |
Shipping Info
Package Weight
0.015
