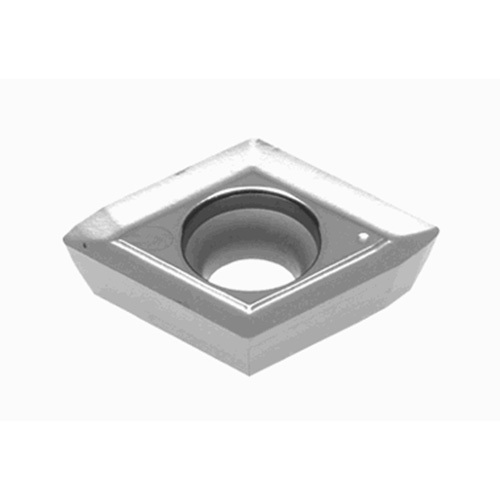

GDGT10H3PDFR-AJ DS1100
Milling Insert; GDGT10H3PDFR-AJ DS1100 DS1100 × 0.394″ Width × 0.138″ Thickness ; Carbide ; Diamond Like Carbon
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Diamond Like Carbon |
| Application | | Shoulder Milling | | Grade | DS1100 |

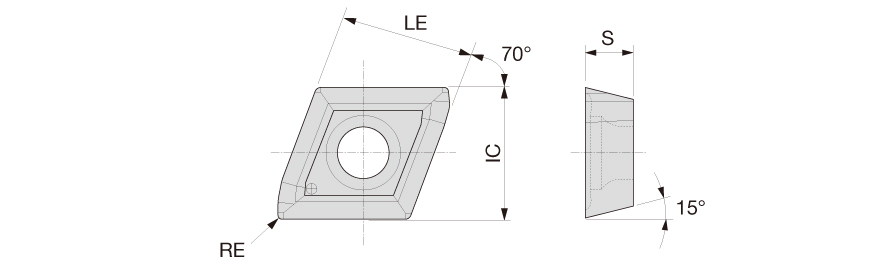

| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.354″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 0.394″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 0.394″ | Cutting Edge Effective Length (LE) | 0.394″ |
| Insert Thickness (S) | 0.138″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.047″ | Body Material | Carbide |
Product Features
| Family Description | High precision ground insert for aluminum machining | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.101
