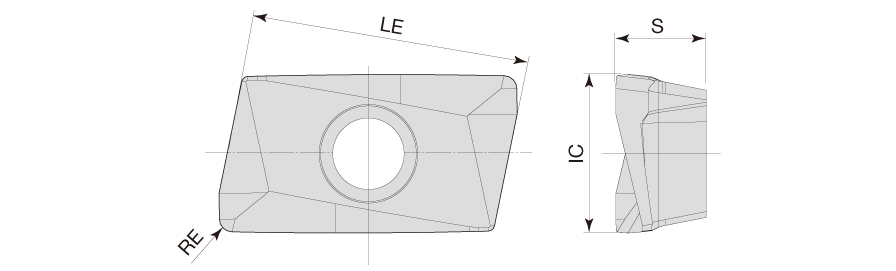

ASGT170508PDFR-AJ DS1100
Milling Insert; ASGT170508PDFRAJ DS1100 DS1100 × 0.386″ Width × 0.22″ Thickness ; Carbide ; Diamond Like Carbon
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Diamond Like Carbon |
| Application | | Shoulder Milling | | Grade | DS1100 |
| Insert Length (INSL) | 0.728″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0314″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.63″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.386″ | Cutting Edge Effective Length (LE) | 0.665″ |
| Inscribed Circle Diameter (IC) | 0.386″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.22″ | Body Material | Carbide |
Product Features
| Family Description | High precision ground insert with AJ chipbreaker for aluminum machining | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.218
