ASGT170504PDFR-AJ DS1100
Milling Insert; ASGT170504PDFRAJ DS100 DS1100 × 9.8 mm Width × 5.6 mm Thickness ; Carbide ; Diamond Like Carbon
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Diamond Like Carbon |
| Application | | Shoulder Milling | | Grade | DS1100 |

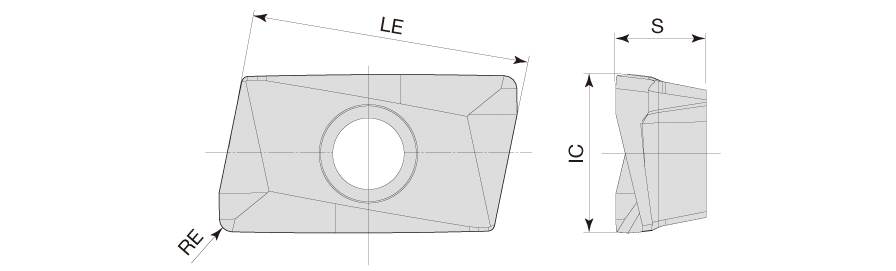

| Insert Length (INSL) | 18.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 16 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 9.8 mm | Cutting Edge Effective Length (LE) | 16.9 mm |
| Inscribed Circle Diameter (IC) | 9.8 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5.6 mm | Body Material | Carbide |
Product Features
| Family Description | High precision ground insert with AJ chipbreaker for aluminum machining | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.218
