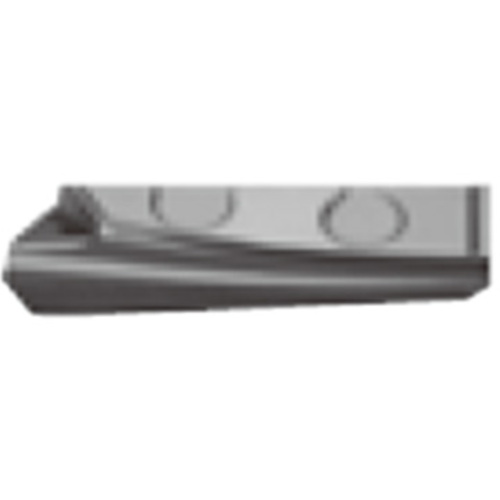

XHGR18T210FR-AJ DS1200
Milling Insert; XHGR18T210FRAJ DS1200 DS1200 × 0.239″ Width × 0.094″ Thickness ; Carbide ; Diamond Like Carbon
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DS1200 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

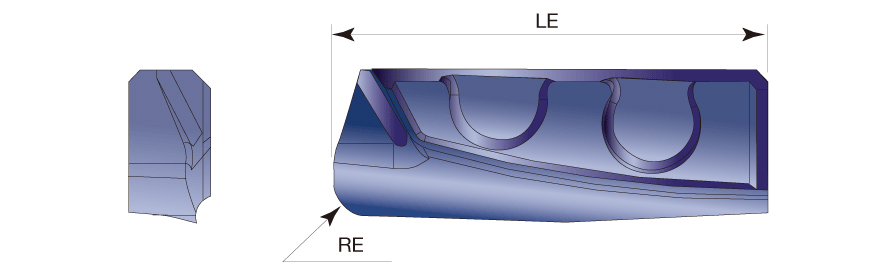

| Insert Length (INSL) | 0.709″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 0.0393″ | Number of Cutting Edges | 1 |
| Depth of Cut Maximum (APMX) | 0.63″ | Cutting Edge Effective Length (LE) | 0.709″ |
| Insert Width (W1) | 0.239″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.094″ | Body Material | Carbide |
| Coating | Diamond Like Carbon |
Product Features
| Family Description | High precision ground insert for aluminum machining | Country of Origin | Japan |
Shipping Info
Package Weight
0.014
