XHGR18T220ER-MJ AH730
Milling Insert; XHGR18T220ERMJ AH730 AH730 × 6.08 mm Width × 2.4 mm Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | AH730 |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 18 mm | Tool Type | Single sided Inserts |

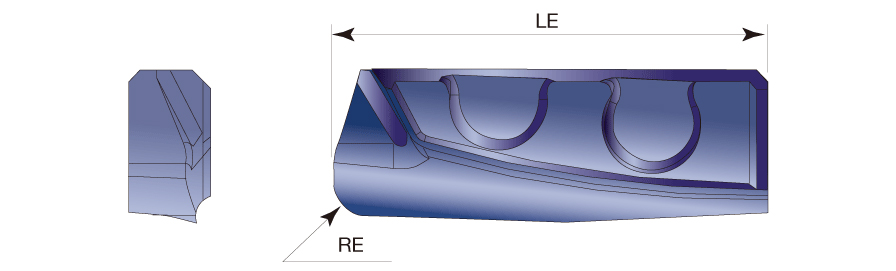

| Corner Radius (RE) | 2 mm | Number of Cutting Edges | 1 |
| Depth of Cut Maximum (APMX) | 16 mm | Cutting Edge Effective Length (LE) | 18 mm |
| Insert Width (W1) | 6.08 mm | Measurement Type | Metric |
| Insert Thickness (S) | 2.4 mm | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | High precision ground insert for general purpose | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.134
