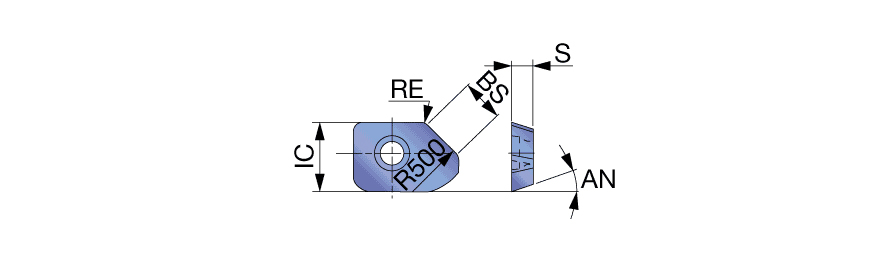

WWCW13T3AFER-WS GH110
Milling Insert; WWCW13T3AFER-WS GH110 GH110 × 0.756″ Width × 0.157″ Thickness ; Carbide ; TiCNO
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | GH110 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |
| Corner Radius (RE) | 0.059″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.039″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.756″ | Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Inscribed Circle Diameter (IC) | 0.504″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.307″ | Body Material | Carbide |
| Coating | TiCNO |
Product Features
| Family Description | Wiper insert for finishing of steel and cast iron. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.260
