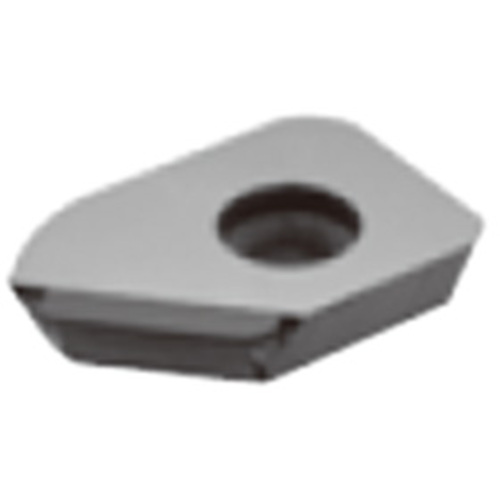

WWCW13T3AFFR-WD DX140
Milling Insert; WWCW13T3AFFR-WD DX140 DX140 × 0.756″ Width × 0.157″ Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX140 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |
| Corner Radius (RE) | 0″ | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.039″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.756″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.504″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.307″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Wiper insert for aluminum finishing with PCD | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.044
