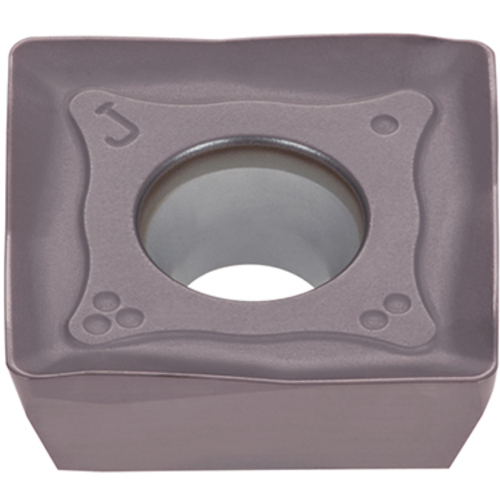

SWGT1304PDPR-MJ NS740
Milling Insert; SWGT1304PDPR-MJ NS740 NS740 × 0.535″ Width × 0.197″ Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | | Grade | NS740 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0059 in/tooth |

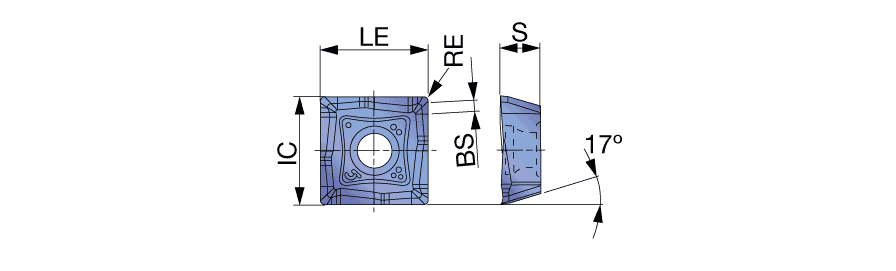

| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Cermet |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.535″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.535″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.197″ | Cutting Edge Effective Length (LE) | 0.535″ |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | For finishing, precision machining with ground insert. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.115
