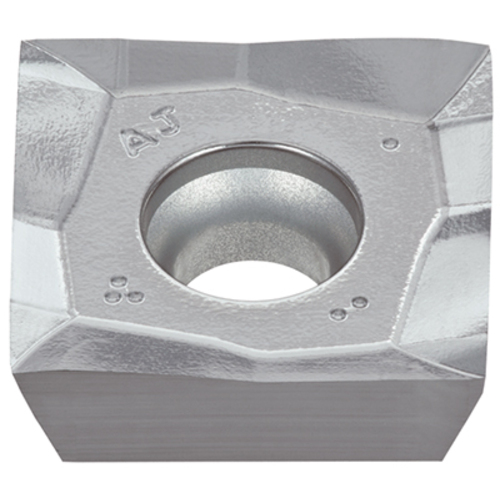

SWGT1304PDFR-AJ KS05F
Milling Insert; SWGT1304PDFR-AJ KS05F KS05F × 0.535″ Width × 0.197″ Thickness ; Carbide
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | KS05F |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |

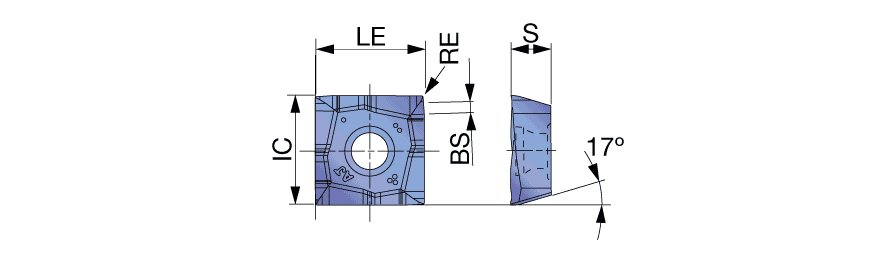

| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 0.535″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.535″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.197″ | Cutting Edge Effective Length (LE) | 0.535″ |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Ground and lapped insert with excellent shapness for aluminum machining | Country of Origin | Japan |
| Remarks | RE:0 Minute chamfer |
Shipping Info
Package Weight
0.021
