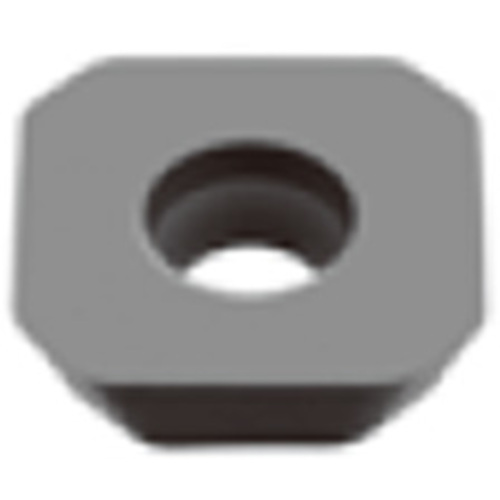

SWMW13T3AFTR AH120
Milling Insert; SWMW13T3AFTR AH120 AH120 × 0.547″ Width × 0.157″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |

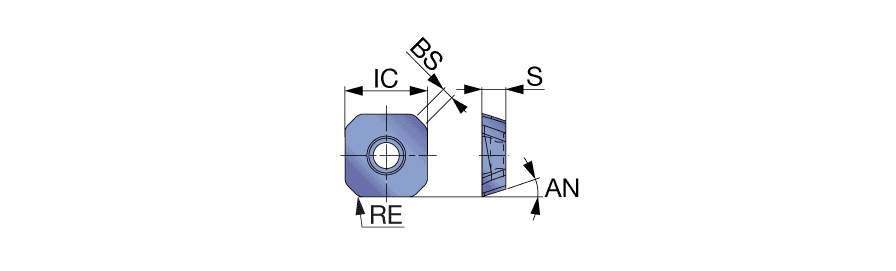

| Corner Radius (RE) | 0.0591″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.547″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.547″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Flat-top insert with excellent impact resistance. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.185
