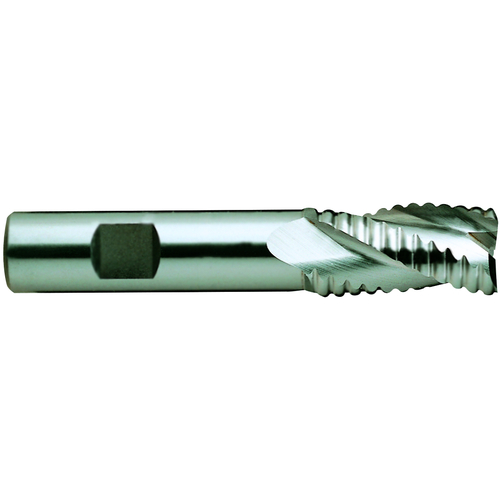

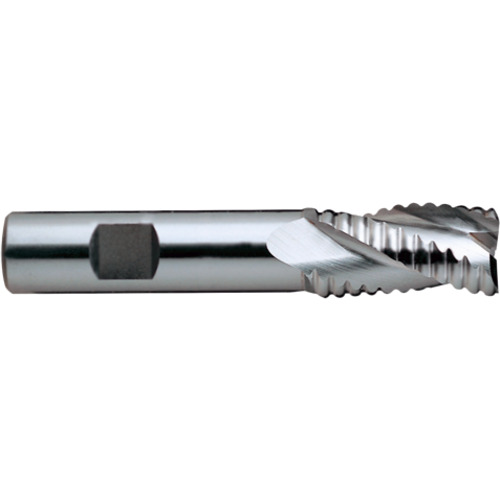

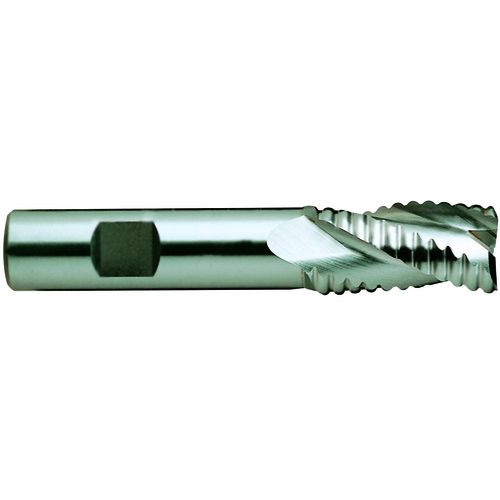

Square End Mill; 1/4″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-7/16″ OAL ; 3 FL ; HSSCo8 ; Bright ; Series E2191
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | HSSCo8 3 Flute 37 Degrees Helix Regular Length for Aluminum |
| Overall Length (OAL) | 2-7/16″ | Length Group | Regular |
| Cutting Edge Material | HSSCo8 | Flute Type | Roughing |
| Coating | Uncoated | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | E2191 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.073
