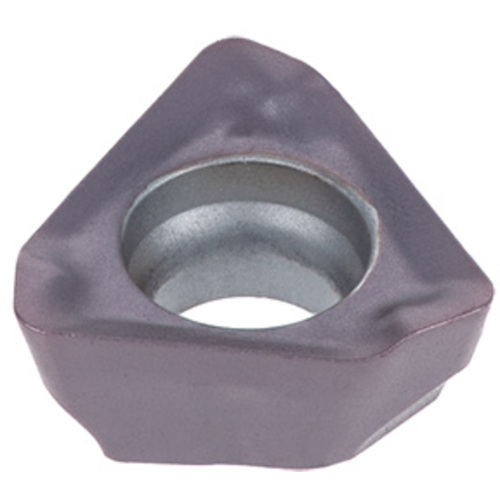

TOMT040204PXER-MM AH120
Milling Insert; TOMT040204PXER-MM AH120_ AH120 × 0.087″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0047 in/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

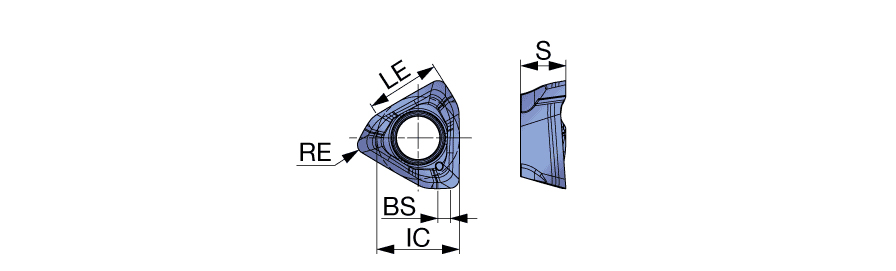

| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.138″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.157″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.087″ | Cutting Edge Effective Length (LE) | 0.142″ |
| Wiper Edge Length (BS) | 0.024″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | Single-sided insert with 3 edges and MM chipbreaker | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
