| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | PCD |

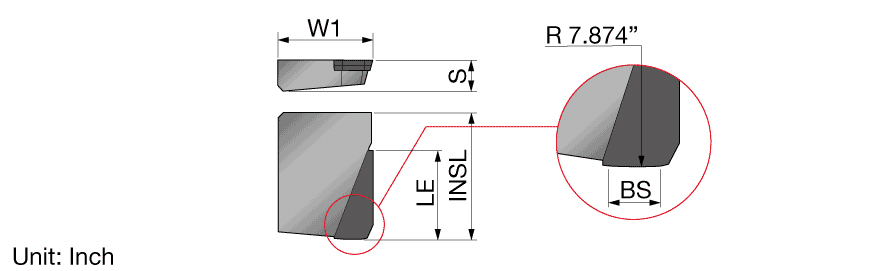

| Insert Length (INSL) | 1/2″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.295″ | Minimum Feed per Tooth (fz(min)) | 0.0019 in/tooth |
| Insert Width (W1) | 0.374″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.122″ | Cutting Edge Effective Length (LE) | 0.02″ |
| Wiper Edge Length (BS) | 0.087″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | DX110 |
Product Features
| Family Description | PCD long edged insert with wiper | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
