LNMU0202ZER-MM AH130

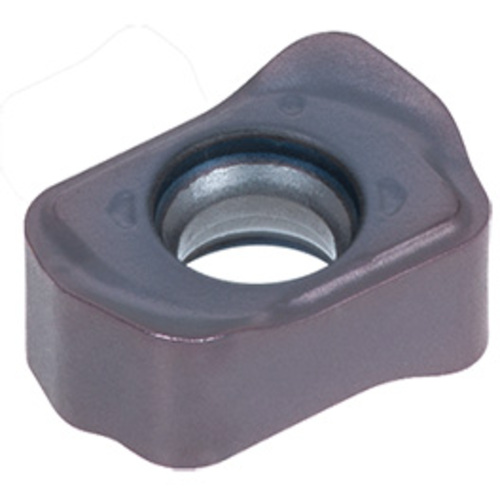

Milling Insert; LNMU0202ZER-MM AH130_ AH130 × 0.157″ Width × 0.122″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | AH130 |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

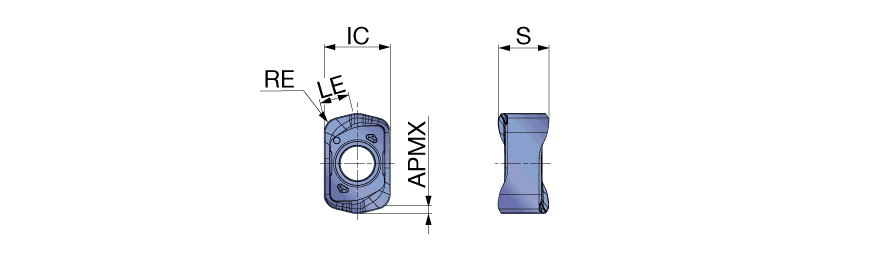

| Corner Radius (RE) | 0.0354″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.02″ | Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.157″ | Cutting Edge Effective Length (LE) | 0.07″ |
| Inscribed Circle Diameter (IC) | 0.157″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.122″ | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Double sided insert with 4 edges and MM chipbreaker | Country of Origin | Japan |
