| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.006 in/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

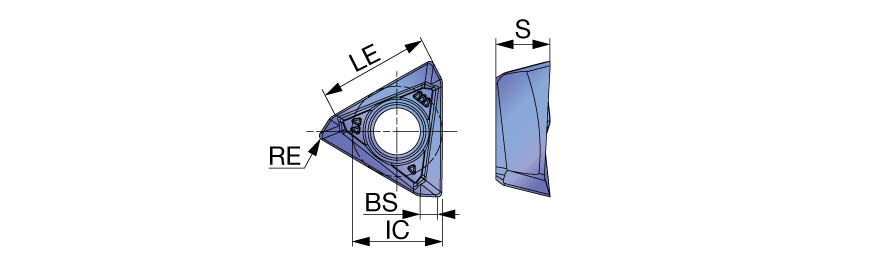

| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.22″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.13″ | Cutting Edge Effective Length (LE) | 0.244″ |
| Wiper Edge Length (BS) | 0.043″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
| Grade | AH3225 |
Product Features

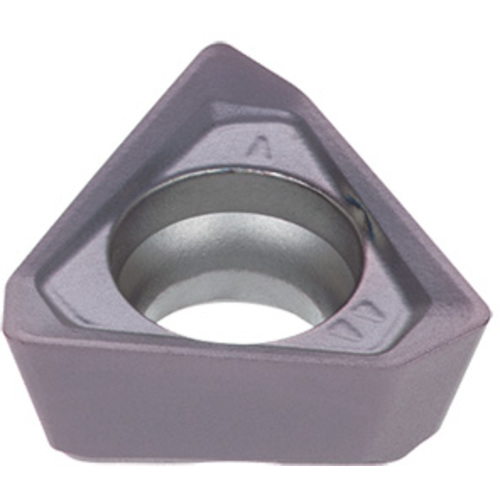

| Family Description | High performance insert with MJ chipbreaker for precise machining | Country of Origin | JAPAN |
