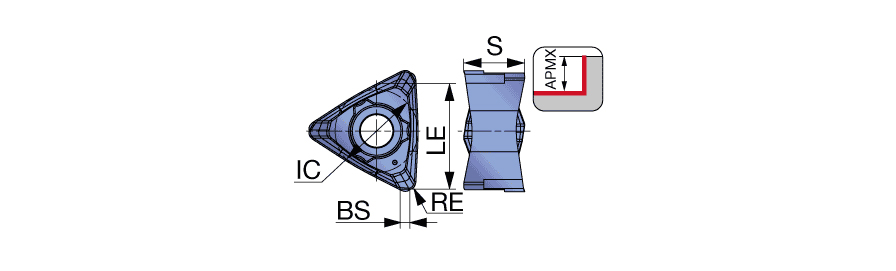

| Applicable Material | | Steel | Stainless Steel | | Grade | AH3225 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.256″ | Minimum Feed per Tooth (fz(min)) | 0.003 in/tooth |
| Inscribed Circle Diameter (IC) | 0.224″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.161″ | Cutting Edge Effective Length (LE) | 0.256″ |
| Wiper Edge Length (BS) | 0.024″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
Product Features

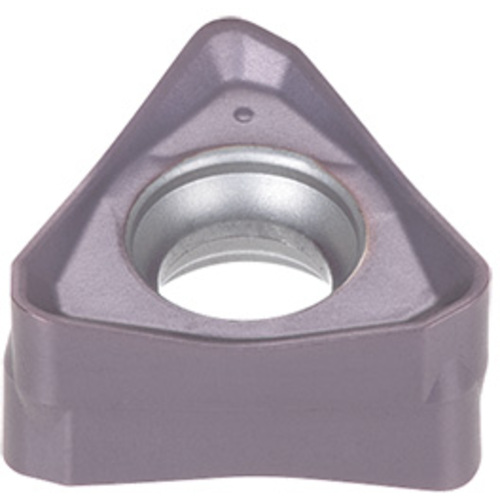

| Family Description | M-class, double-sided triangle insert with 6 edges and MJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.2
