| Applicable Material | | Steel | Stainless Steel | | Coating | TiAlSiCrN |
| Application | | Profile Milling | | Grade | AH3225 |

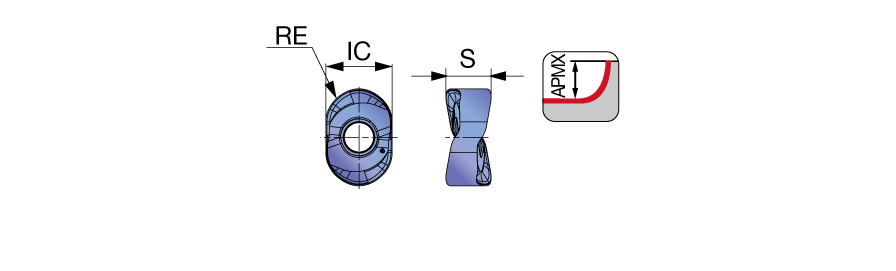

| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0236 in/tooth |
| Corner Radius (RE) | 0.1968″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0059 in/tooth |
| Insert Width (W1) | 0.409″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.409″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.24″ | Body Material | Carbide |

Product Features

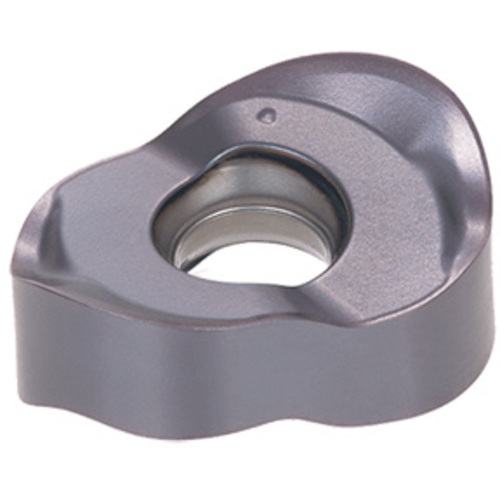

| Family Description | Double-sided radius insert with 4 edges and MJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0
