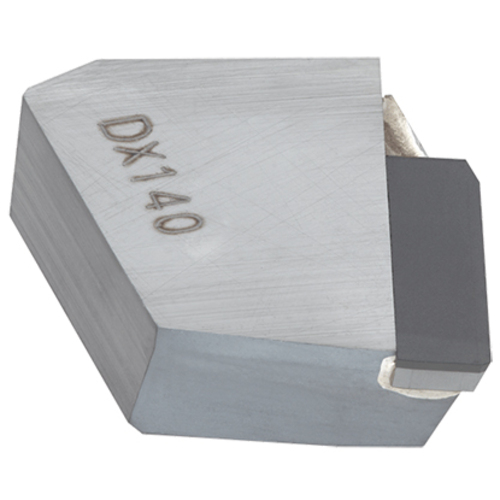

YDEN0905PDFR-D DX140
Milling Insert; YDEN0905PDFR-D DX140 DX140 × 0.488″ Width × 0.224″ Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX140 |

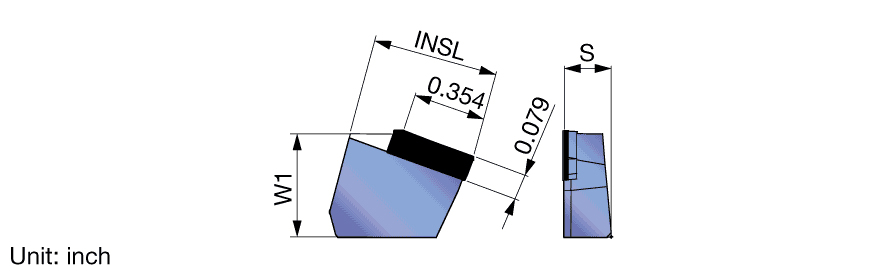

| Application | | Shoulder Milling | | Corner Chamfer Width (CHW) | 0.009″ |
| Insert Length (INSL) | 0.594″ | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Type | Mill Ultra hard Inserts |
| Insert Width (W1) | 0.488″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.224″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.039″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | PCD insert for EDPD/DPD09 milling cutter | Country of Origin | Japan |
| Remarks | Our company regrinds this insert. |
Shipping Info
Package Weight
0.049
