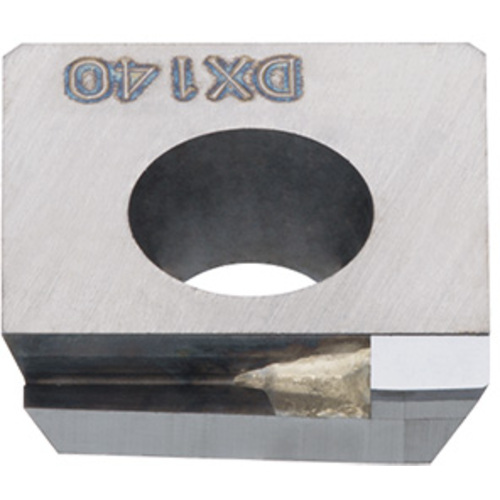

SEGW12X4ZEFR-WD DX140
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX140 |
| Application | | Face Milling | | Cutting Edge Material | PCD |

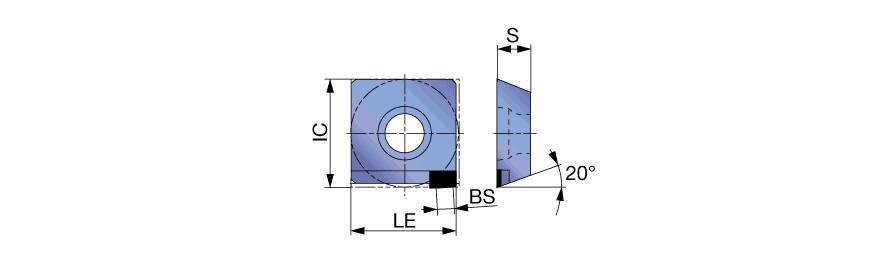

| Depth of Cut Maximum (APMX) | 0.02″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.504″ | Number of Cutting Edges | 1 |
| Inscribed Circle Diameter (IC) | 0.504″ | Cutting Edge Effective Length (LE) | 0.488″ |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Positive 20deg relief ang., G class, square PCD wiper insert for T/EFE12 milling cutter | Country of Origin | Japan |
| Remarks | T DIA inserts listed above can not be reground. |
Shipping Info
Package Weight
0.035
