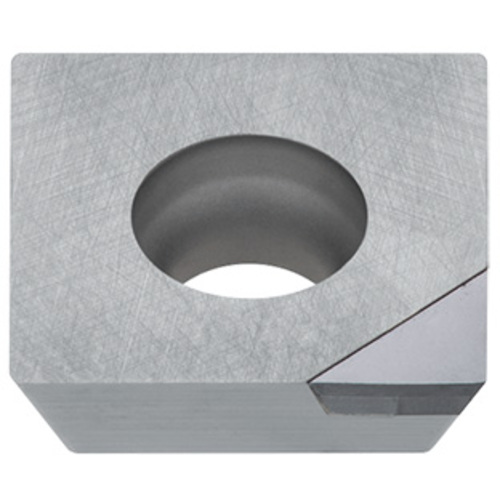

SEGW12X4ZEFR-D DX140
Milling Insert; SEGW12X4ZEFR-D DX140 DX140 × 1/2″ Width × 0.157″ Thickness ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | PCD |

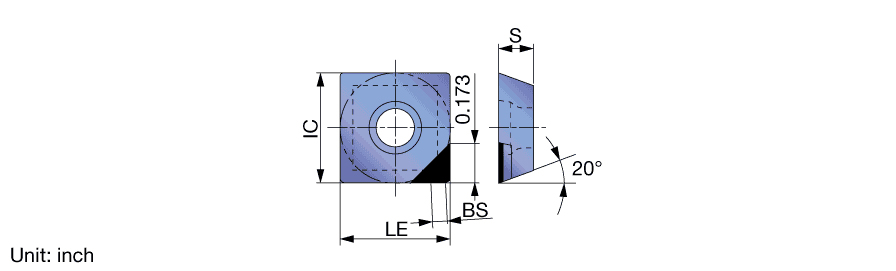

| Depth of Cut Maximum (APMX) | 0.118″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.157″ | Cutting Edge Effective Length (LE) | 1/2″ |
| Wiper Edge Length (BS) | 0.071″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | DX140 |
Product Features
| Family Description | Positive 20deg relief ang., G class, square PCD insert for T/EFE12 milling cutter | Country of Origin | JAPAN |
| Remarks | T DIA inserts listed above can not be reground. |
Shipping Info
Package Weight
0.035
