SEGW12X4ZEPR NS740

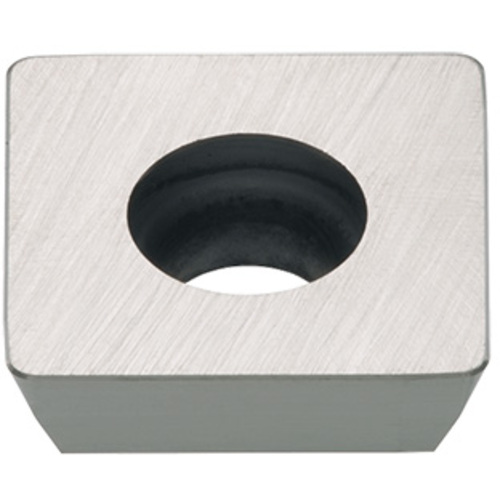

Milling Insert; SEGW12X4ZEPR NS740 ISO NS740 × 1/2″ Width × 0.157″ Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | | Grade | NS740 |
| Application | | Face Milling | | Cutting Edge Material | Cermet |

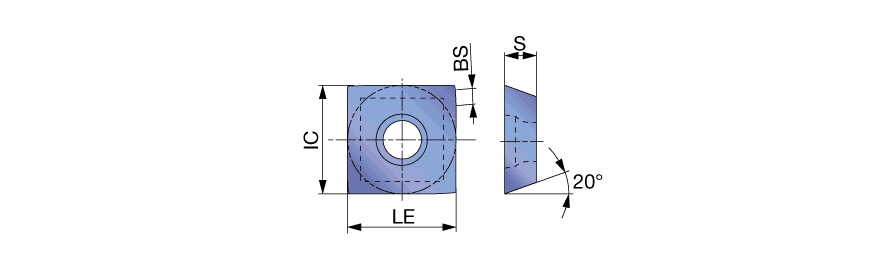

| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 1/2″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Edge Effective Length (LE) | 1/2″ |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.055″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Flat-top square insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.093
