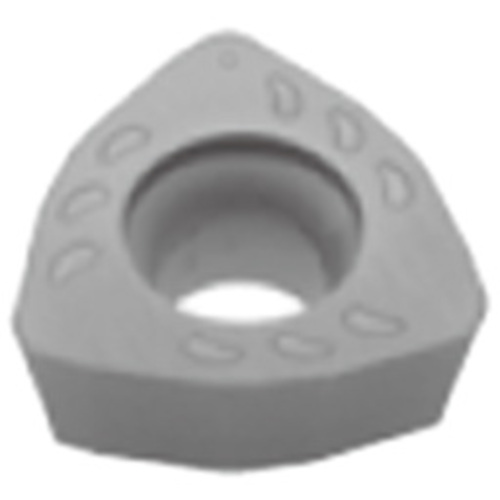

WPMT090725ZSR AH140
Milling Insert; WPMT090725ZSR AH140 AH140 × 0.276″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | | Grade | AH140 |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

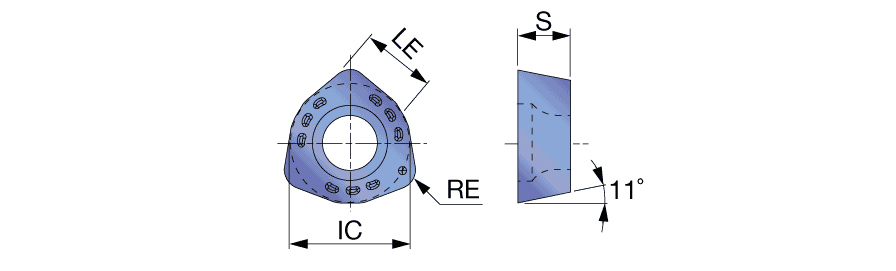

| Corner Radius (RE) | 0.0984″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.118″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.591″ | Cutting Edge Effective Length (LE) | 0.354″ |
| Insert Thickness (S) | 0.276″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Flat-top trigon insert for MillFeed cutters for medium diameter | Country of Origin | Japan |
Shipping Info
Package Weight
0.036
